Atina JDE Connector - Quick Setup Overview

Table of Contents

Introduction

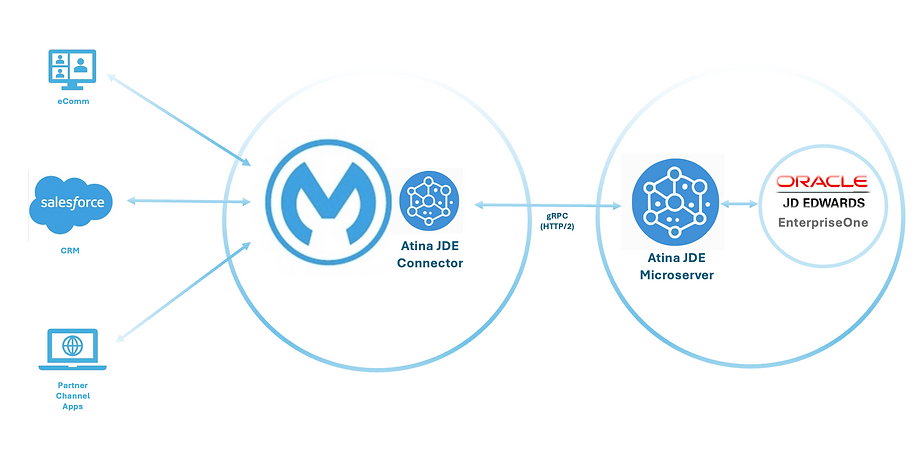

The MuleSoft ATINA JDE Connector requires an Atina JDE Microservice to work. This guide provides a streamlined, step-by-step walkthrough to get you up and running.

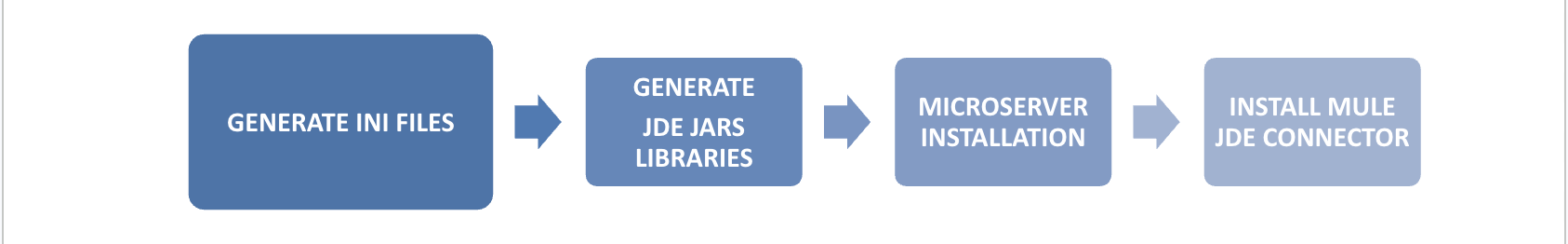

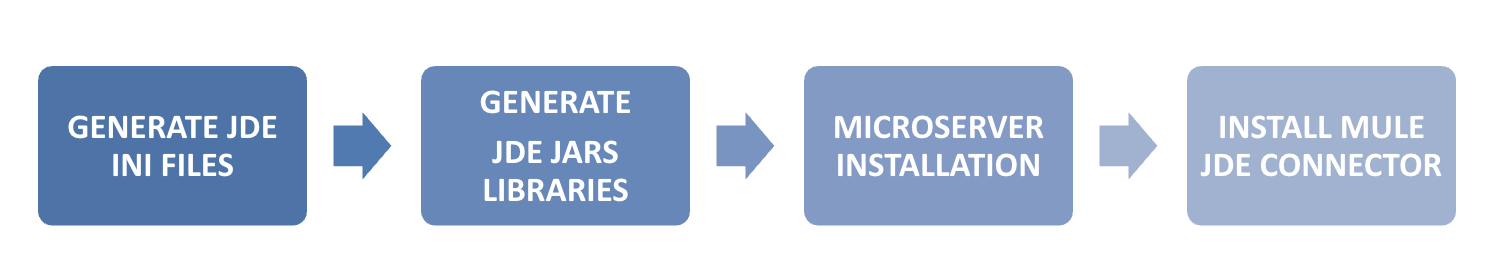

The setup consists of four main steps:

Generate JDE INI Files — Create the base configuration files from your JDE Server Manager.
Generate JAR Libraries — Package JD Edwards libraries into deployable JARs.
Microservice Installation — Deploy the Atina JDE Microservice using Docker.
Install Mule JDE Connector — Add the connector to your MuleSoft project.

Prerequisites

This setup requires:

Administrative access to your JDE environment and servers
JDE interoperability and network access configured for the microservice
OpenJDK 8 installed
Maven 3.8.1 or higher
Docker and Docker Compose
Network access and credentials to JDE Server Manager
Access to JDE Deployment Server

For detailed prerequisite information, see the Atina JDE Microservices Installation Guide.

Step 1: Generate INI Configuration Files

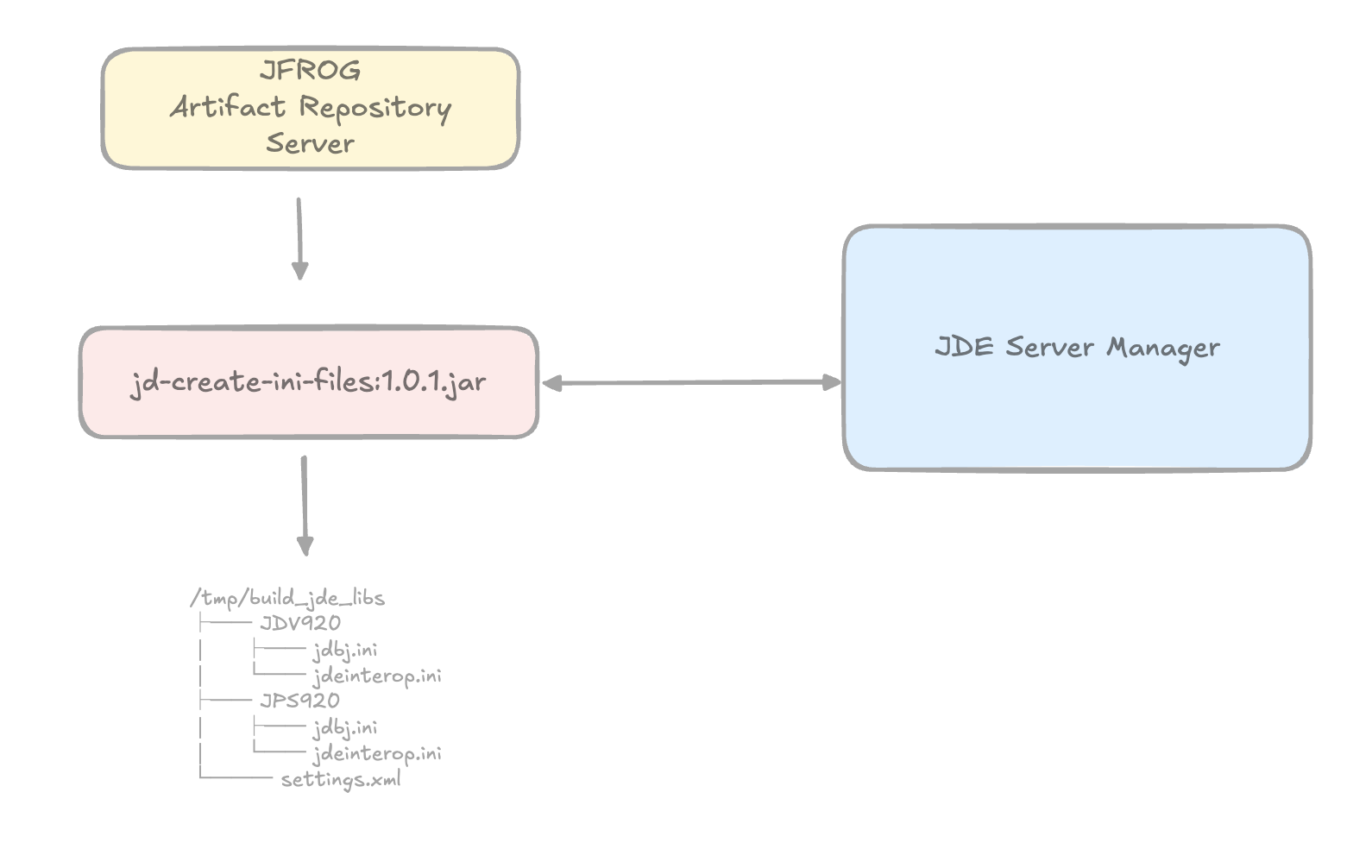

The JDE Atina Generate Configuration Files Tool is a Java CLI application that generates base INI files. It retrieves all information from the JDE Enterprise Server Manager using its REST API. During execution, you will be asked to select the HTML Client instance for your environment.

Prerequisites for this step:

OpenJDK 8 installed
Network access and credentials to JDE Server Manager

Step 1.1 - Download the Tool

Linux:

curl "https://jfrog.atina-connection.com/artifactory/libs-release-local/com/atina/jd-create-ini-files/1.0.0/jd-create-ini-files-1.0.1.jar" \
  -o jd-create-ini-files-1.0.1.jar

Windows PowerShell:

curl.exe "https://jfrog.atina-connection.com/artifactory/libs-release-local/com/atina/jd-create-ini-files/1.0.0/jd-create-ini-files-1.0.1.jar" `
  -o "jd-create-ini-files-1.0.1.jar"

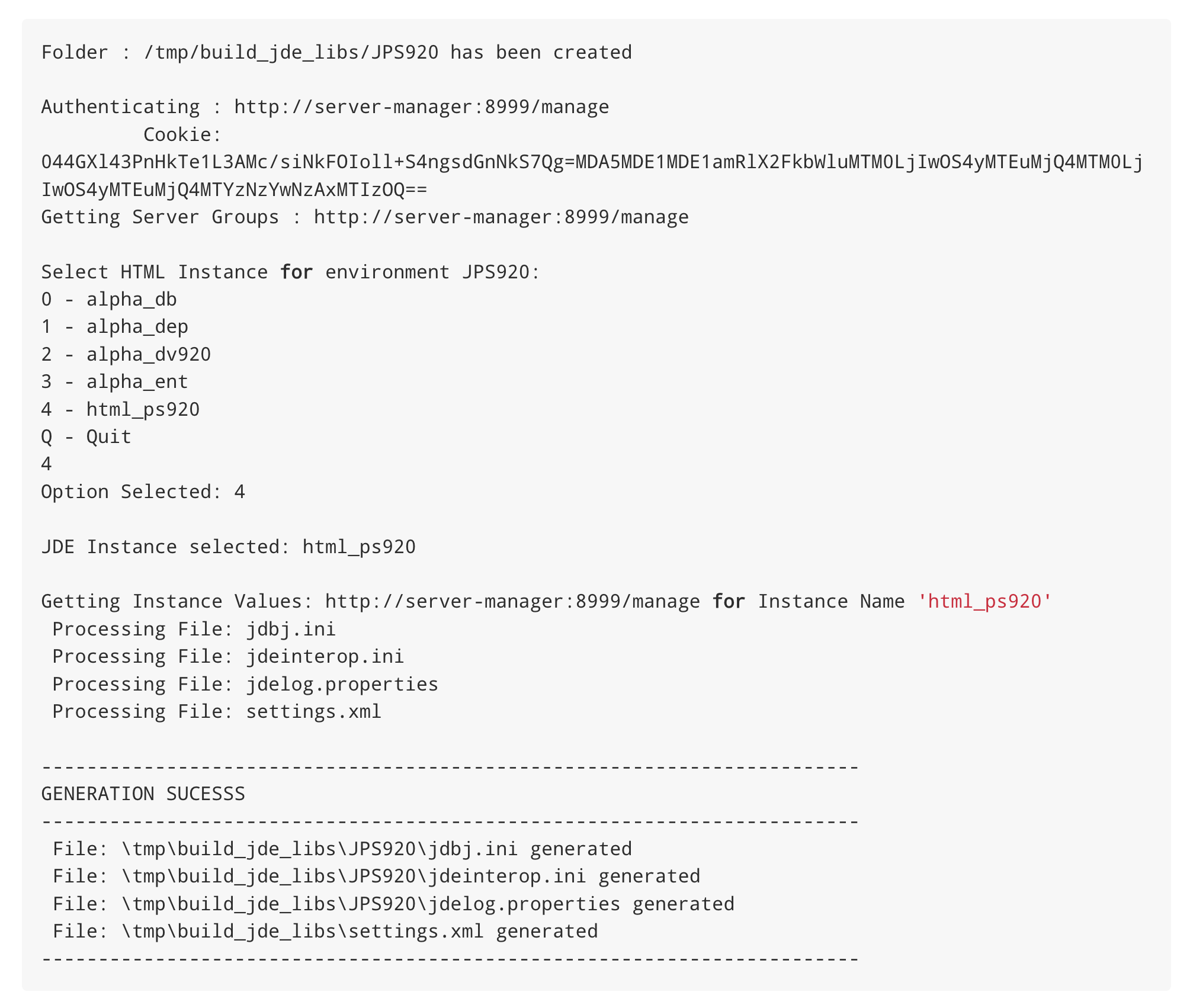

Step 1.2 - Run the Tool

The tool is interactive — you will be asked to pick the HTML instance:

java -jar jd-create-ini-files-1.0.1.jar \
  -u <jde_admin> \
  -p <password> \
  -s http://<server-manager-host>:8999/manage \
  -e <ENV ex. JDV920>

Review the generated INI files to verify that the values are correct.

Manual Alternative

If you encounter any issues retrieving information from the servers, you can generate the INI files manually by obtaining the values directly from the JDE Server Manager. The video below shows where to find each value in the Server Manager interface.

First, run the following command to generate the folder structure with template INI files that you will need to update manually:

java -jar jd-create-ini-files-1.0.1.jar \
  -e JDV920 \
  -m Y \
  -f /tmp/build_jde_libs

This creates the directory structure with base INI files. You must then update these files with the correct values obtained from the Server Manager.

Version: 1.0.1
Running with migration options
-----------------------------------------------------------
Creating environment folder...
Folder : /tmp/demo/JDV920 has been cleaned
 Processing File: jdbj.ini
processIniFile JDBJ: File: /tmp/demo/JDV920/jdbj.ini generated
 Processing File: jdeinterop.ini
processIniFile INTEROP: File: /tmp/demo/JDV920/jdeinterop.ini generated
 Processing File: jdelog.properties
processIniFile JDELOG: File: /tmp/demo/JDV920/jdelog.properties generated
-----------------------------------------------------------
Creating Setting XML File...
 Processing File: settings.xml
 File: /tmp/demo/settings.xml generated

Watch video: Generate INI Files (includes manual Server Manager walkthrough)

For more details, see the section JDE Atina Generate Configuration Files Tool in the Atina JDE Microservices Installation Guide.

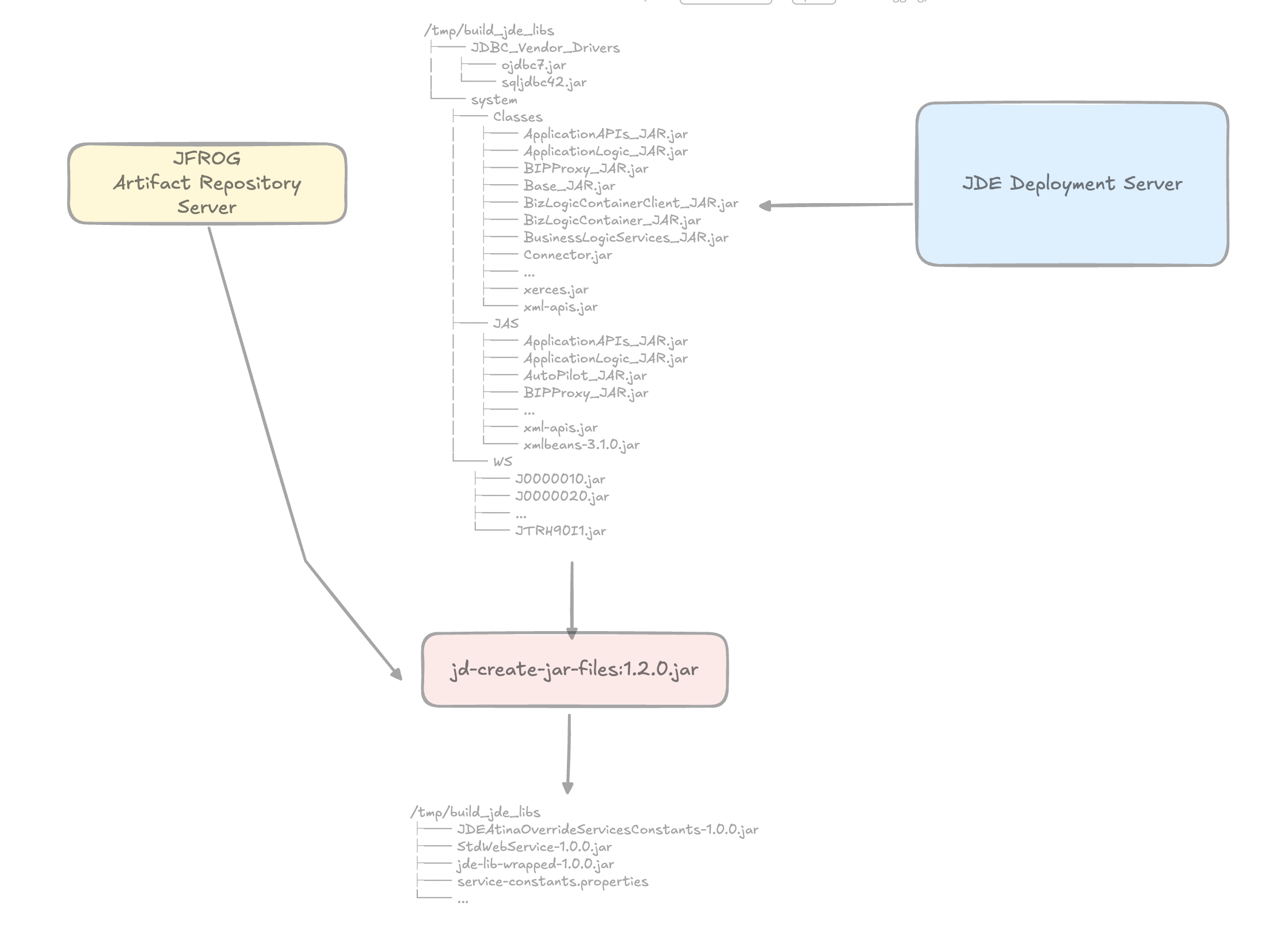

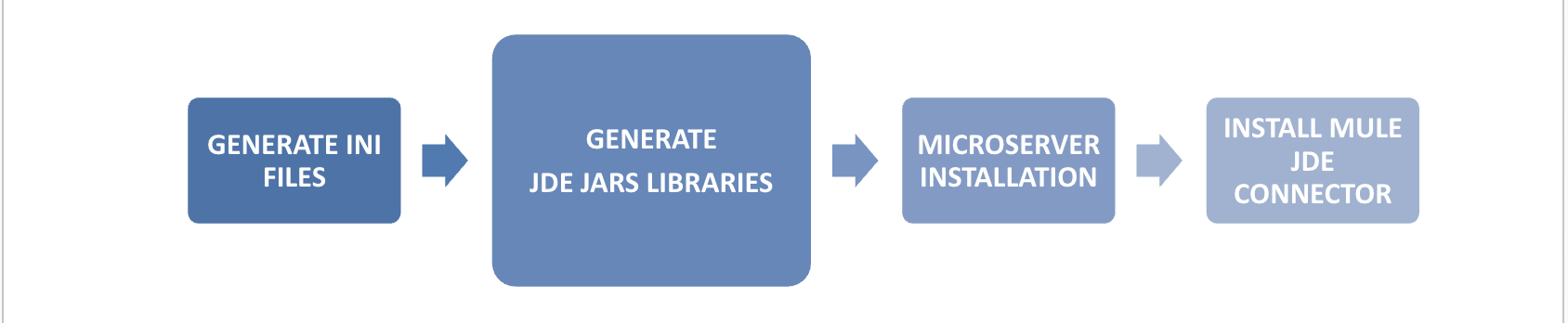

Step 2: Generate JAR Libraries

This tool packages the JD Edwards libraries into deployable JAR files required by the Atina JDE Microservice. It simplifies dependency management and ensures that all necessary classes are available at runtime.

A web-based tool is also available for JAR generation at builder.atina-connection.com. If you are a new customer, click the New Customer button, enter your corporate email, and you will receive instructions by email.

Prerequisites for this step:

OpenJDK 8 installed
Maven 3.8.1 or higher
Access and credentials to JDE Deployment Server

The tool will generate the following artifacts:

JDEAtinaOverrideServicesConstants-1.0.0.jar — Provides local override of web service properties, avoiding the need to modify JDE configuration.
service-constants.properties — Contains configuration properties for the microservice.
jde-lib-wrapped-1.0.0.jar — Bundles the core JD Edwards interoperability libraries required for integration.
StdWebService-1.0.0.jar — Includes wrappers for standard JD Edwards web services.

Step 2.1 - Download the JAR Creation Tool

curl https://jfrog.atina-connection.com/artifactory/libs-release-local/com/atina/jd-create-jar-files/1.0.0/jd-create-jar-files-1.2.0.jar \
  --output jd-create-jar-files-1.2.0.jar

Step 2.2 - Create the Required Folder Structure

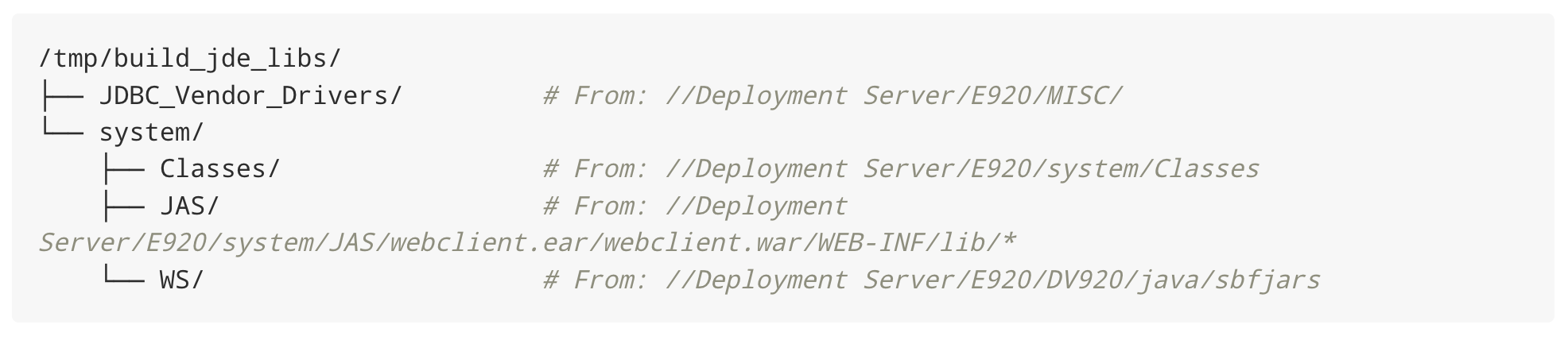

Create the following directory layout and populate it with the required files from the Deployment Server:

mkdir -p /tmp/build_jde_libs/JDBC_Vendor_Drivers \
         /tmp/build_jde_libs/system/Classes \
         /tmp/build_jde_libs/system/JAS \
         /tmp/build_jde_libs/system/WS

Step 2.3 - Copy Deployment Server Files

Copy the required JDE libraries from the Deployment Server into your local directory structure:

JDBC Vendor Drivers:

cp -rv ~/atina/E1_DeploymentServer/E920/MISC/* /tmp/build_jde_libs/JDBC_Vendor_Drivers/

System/Classes:

cp -rv ~/atina/E1_DeploymentServer/E920/system/Classes/* /tmp/build_jde_libs/system/Classes/

System/JAS:

cp -rv ~/atina/E1_DeploymentServer/E920/system/JAS/webclient.ear/webclient.war/WEB-INF/lib/* /tmp/build_jde_libs/system/JAS/

Technical note

In newer JD Edwards releases, the JAS / HTML Server libraries may not be located under the traditional Deployment Server path:

system/JAS/webclient.ear/webclient.war/WEB-INF/lib

In environments managed by Server Manager, these libraries may instead be located under the corresponding Agent / Instance deployment path.

Example:

D:\jde_home_agent\SCFHA\targets\CA15A2660_DV_HTML_01\owl_deployment\webclient.ear\app\webclient.war\WEB-INF\lib

If the standard system/JAS path is not available, or does not contain the expected JAR files, locate the active HTML Server instance managed by Server Manager and copy the required libraries from that deployment location instead.

System/WS:

cp -rv ~/atina/E1_DeploymentServer/E920/DV920/java/sbfjars/* /tmp/build_jde_libs/system/WS/

Step 2.4 - Define Local Maven Repository

Run this command to find where the current local repository is defined:

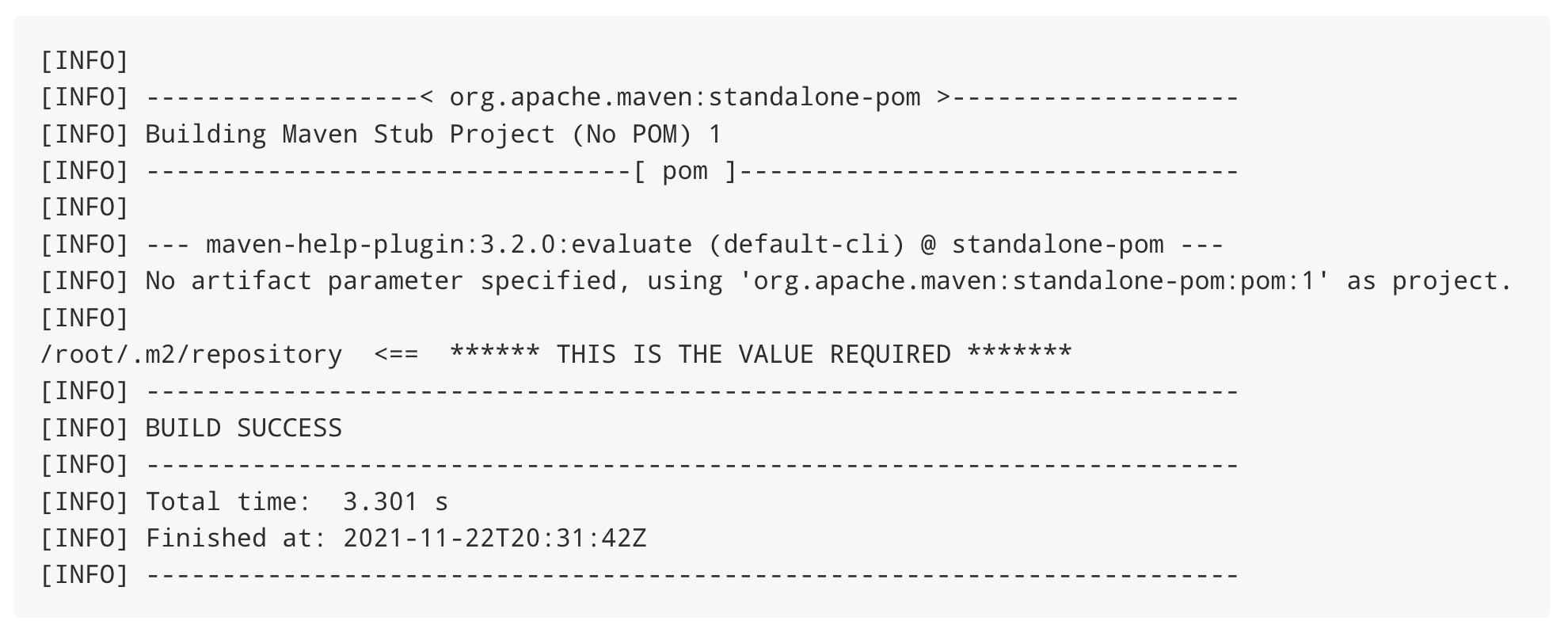

mvn help:evaluate -Dexpression=settings.localRepository

The value returned (e.g., /root/.m2/repository) will be used in the next step. Make sure to copy it for reference.

Step 2.5 - Execute the JAR Tool

java -jar jd-create-jar-files-1.2.0.jar \
  -r /root/.m2/repository

This command runs the tool and specifies the Maven local repository path (identified in the previous step).

Once completed, the following files will be created:

------------------------------------------------------------------------
GENERATION SUCESSS
------------------------------------------------------------------------
JDE Library bundle has been copied to: /tmp/build_jde_libs/jde-lib-wrapped-1.0.0.jar
JDE WS has been copied to:             /tmp/build_jde_libs/StdWebService-1.0.0.jar
Constants File has been copied to:     /tmp/build_jde_libs/service-constants.properties
Override Jar File has been copied to:  /tmp/build_jde_libs/JDEAtinaOverrideServicesConstants-1.0.0.jar
------------------------------------------------------------------------
PTF:[9.2.5.6]

build_jde_libs
      ├─ jde-lib-wrapped-1.0.0.jar
      ├─ service-constants.properties
      ├─ JDEAtinaOverrideServicesConstants-1.0.0.jar
      └─ StdWebService-1.0.0.jar

Watch video: Create JARs Libraries (Part 1)

Watch video: Create JARs Libraries (Part 2)

For more details, see the section JDE Atina Generate Jars Files Tool in the Atina JDE Microservices Installation Guide.

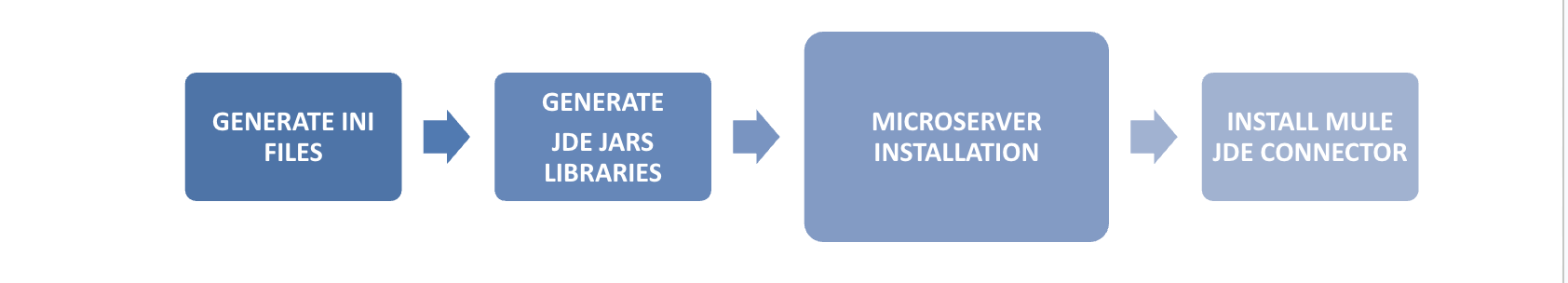

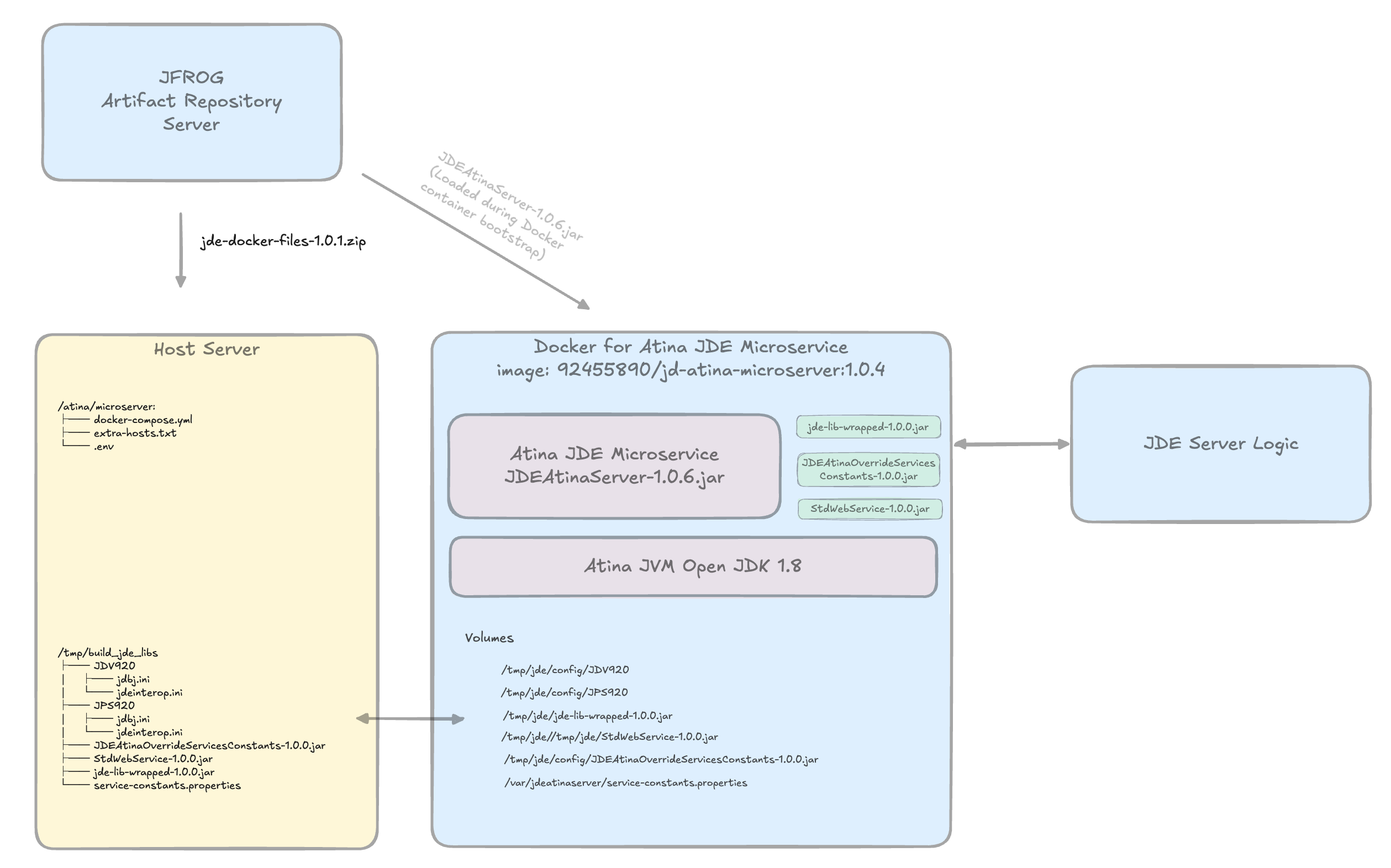

Step 3: Microservice Installation

This section explains how to deploy the Atina JDE Microservice using Docker and Docker Compose. You will configure environment variables, initialize the container, and run a basic test to validate connectivity with JD Edwards.

Prerequisites for this step:

OpenJDK 8 installed
Maven 3.8.1 or higher
Docker

Step 3.1 - Download Docker Compose Files

curl https://jfrog.atina-connection.com/artifactory/libs-release-local/com/acqua/jde-docker-files/1.0.1/jde-docker-files-1.0.1.zip --output jd-docker-files.zip

Unzip:

unzip jd-docker-files.zip

Step 3.2 - Configure Environment Variables

Edit the .env file and set the values according to your infrastructure.

Microservice settings:

JDE_MICROSERVER_IP=172.28.0.2
JDE_MICROSERVER_PORT=8077
JDE_MICROSERVER_DEBUG_PORT=5005
JDE_MICROSERVER_CODE=demo

JDE_MICROSERVER_IP: Informational value used to indicate the IP address through which the microservice is exposed. This value does not affect the internal runtime configuration of the service.
JDE_MICROSERVER_PORT: Port exposed by the microservice. Change this value if you need to use a different port, for example to avoid conflicts with other services.
JDE_MICROSERVER_DEBUG_PORT: Debug port exposed by the microservice for remote debugging.
JDE_MICROSERVER_CODE: Unique license code assigned to the customer by Atina. This value is mandatory for the service to start correctly.

The database name must match the Data Source name defined in the JDE OCM. Incorrect names may lead to failed connections or incorrect environment targeting.

Hostname resolution inside the container (extra-hosts file):

The microservice supports injecting host mappings into the container’s /etc/hosts using a mounted file. This is useful when the container needs to reach JDE Enterprise Servers and Database hosts that are not resolvable via Docker’s default DNS.

Edit extra-hosts.txt file with the required hostname-to-IP mappings:

# IP            HOSTNAME
138.91.73.161   JDE-ALPHA-ENT
65.52.119.187   JDE-ALPHA-SQL
# END HOSTS

Add the following to your .env:

HOST_EXTRA_HOSTS_FILE=/absolute/path/to/extra-hosts.txt

The hosts file must use Unix line endings (LF), not Windows CRLF. Ensure it ends with # END HOSTS and a final newline.

Volume settings:

Volume_DataLogs=/home/jde/data/logs
Volume_JDETmp=/home/jde/data/tmp
Volume_JDELog=/home/jde/data/jdelog
JDE_LIBS_ROOT=/tmp/build_jde_libs

Volume_DataLogs: General microservice logs.
Volume_JDETmp: Temporary files.
Volume_JDELog: Logs specific to JDE libraries.
JDE_LIBS_ROOT: Path to the folder containing the generated JDE JARs and configuration files. This is used by Docker Compose to mount the artifacts as volumes into the container, replacing the need for manual docker cp commands.

Create the volume directories:

mkdir -p /home/jde/data/logs \
         /home/jde/data/tmp \
         /home/jde/data/jdelog

Step 3.3 - Configure Volume Mounts in docker-compose.yml

The container reads JDE configuration and library files from host-mounted volumes. Update your docker-compose.yml to mount the required files:

services:
  jd-atina-microserver:
    volumes:
      # JDE environment configuration folders
      - ${JDE_LIBS_ROOT}/JDV920:/tmp/jde/config/JDV920:ro
      - ${JDE_LIBS_ROOT}/JPS920:/tmp/jde/config/JPS920:ro

      # JDE library JARs
      - ${JDE_LIBS_ROOT}/jde-lib-wrapped-1.0.0.jar:/tmp/jde/jde-lib-wrapped-1.0.0.jar
      - ${JDE_LIBS_ROOT}/StdWebService-1.0.0.jar:/tmp/jde/StdWebService-1.0.0.jar
      - ${JDE_LIBS_ROOT}/JDEAtinaOverrideServicesConstants-1.0.0.jar:/tmp/jde/JDEAtinaOverrideServicesConstants-1.0.0.jar

      # Service configuration
      - ${JDE_LIBS_ROOT}/service-constants.properties:/var/jdeatinaserver/service-constants.properties:ro

The JDE_LIBS_ROOT variable defined in your .env is used by Docker Compose for path interpolation. This approach replaces the previous docker cp workflow, making deployments more reliable and compatible with container recreation (--force-recreate) without losing files.

Step 3.4 - Start the Container

docker compose --env-file .env up -d --force-recreate

Use: docker compose down -v to stop and remove the container along with its volumes for any changes to take effect on the next startup.

Step 3.5 - Check the Microservice Startup Log

Verify the startup log:

docker exec -it jd-atina-microserver cat /tmp/start.log

-JAVA Image--------------------------------------------
   javaJDKImage:  j2sdk-image-x86_64-u322-b04-20221122.tar.bz2
   DEBUG_ACTIVO:  false
-SERVICE--------------------------------------------
   Name:  172.28.0.2
   Port:  8077
-MOCKING------------------------------------------
   JDE_MICROSERVER_MOCKING:  0
-REPOSITORY-----------------------------------------
   Customer:  https://jfrog.atina-connection.com/artifactory/libs-release
   Atina:     https://jfrog.atina-connection.com/artifactory/libs-release
-ATINA services------------------------------------------
   JDEAtinaServer Version 1.0.6
   JDEAtinaOverrideServicesConstants Version 1.0.0
-LIBRARIES------------------------------------------
   StdWebService Version  1.0.0
   jde-lib-wrapped Version 1.0.0
-LICENSE--------------------------------------------
   Code:  demo
-MICROSERVER----------------------------------------
   JDE_MICROSERVER_TOKEN_EXPIRATION:  3000000
   JDE_MICROSERVER_MOCKING:  0
----------------------------------------------------
-JVM---------------------------------------------
   JDE_JAVA_XMS: 2G
   JDE_JAVA_XMX: 4G
   JDE_JAVA_HEAP_DUMP_ON_OOM: true
   JDE_JAVA_HEAP_DUMP_PATH: /tmp/jde/jvm-dumps
   JDE_JAVA_ERROR_FILE: /tmp/jde/jvm-dumps/hs_err_pid%p.log
   JDE_JAVA_EXTRA_OPTS:
   JAVA_OPTS: -Xms2G -Xmx4G -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/tmp/jde/jvm-dumps -XX:ErrorFile=/tmp/jde/jvm-dumps/hs_err_pid%p.log
----------------------------------------------------
ADDITIONAL SCRIPT: /etc/hosts entries
Added host: 52.183.27.36 JDE-ALPHA-ENT
Added host: 40.125.78.136 JDE-ALPHA-SQL
Cat /etc/hosts:
127.0.0.1	localhost
::1	localhost ip6-localhost ip6-loopback
fe00::	ip6-localnet
ff00::	ip6-mcastprefix
ff02::1	ip6-allnodes
ff02::2	ip6-allrouters
172.19.0.2	1d064a6ec7e2
52.183.27.36 JDE-ALPHA-ENT
40.125.78.136 JDE-ALPHA-SQL
----------------------------------------------------
----------------------------------------------------
 Check log cat /tmp/jde/JDEConnectorServerLog/jde_atina_server_2026-05-14.0.log
 Debug false
 Debug 5005
------------------------------------------------------------------------------------
Starting....:
------------------------------------------------------------------------------------

Check the Docker logs to confirm the microservice started correctly:

docker logs jd-atina-microserver

JDERestServer - *------------------------------------------------------*
JDERestServer - Working Directory: /var/jdeatinaserver
JDERestServer - Tmp Directory: /tmp/jde
JDERestServer - JDE Connector Version: 1.0.6
JDERestServer - JDE Atina Override Services Constants: 1.0.0
JDERestServer - ------------------------------------------------------
JDERestServer - Configuration:
JDERestServer -        SERVICE:
JDERestServer -           IP = [172.28.0.2]
JDERestServer -           Port = [8077]
JDERestServer -           Local IP = [0.0.0.0]
JDERestServer -           Token Expirtation = [3000000]
JDERestServer -           Mocking = [false]
JDERestServer -           Last Build = [2020-08-31-004]
JDERestServer -           Last Build = [2026-05-13 13:40]
JEConnectorServer - Cleanning Temporal Folder: /tmp/jde
JDEConnectorServer - Clean Done
JDEConnectorServer - Created SessionsCleanerTask for 60 minutes
JDEConnectorServer - Created CleannerUtil for 60 minutes
JDEConnectorServer - Iniciando JDE Service Impl con JAVA [1, 8, 0-jdk8u322-b04]
JDERestServer - *---------------------------------------*
JDERestServer - *   Starting JDE Microservice 1.0.6     *
JDERestServer - *   JDE Microservice started!           *
JDERestServer - *---------------------------------------*

Step 3.6 - Validate the Microservice Deployment

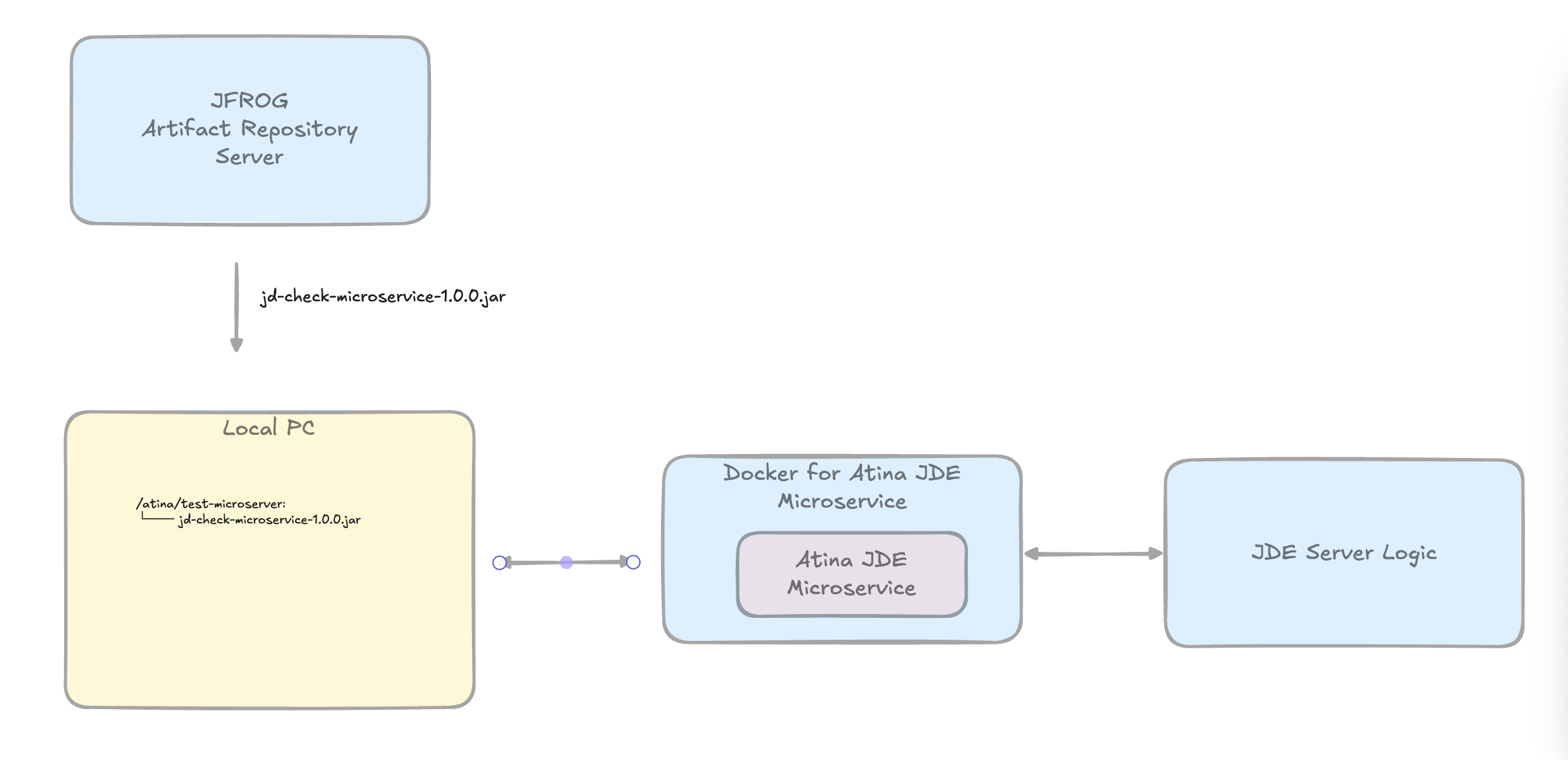

Once the microservice is deployed and running, you can use the JD Atina Check Microservice Tool to validate that it can connect to JD Edwards and invoke a basic web service.

Download the Check Tool:

curl https://jfrog.atina-connection.com/artifactory/libs-release-local/com/atina/jd-check-microservice/1.0.0/jd-check-microservice-1.0.0.jar \
  --output jd-check-microservice-1.0.0.jar

Run the test:

java -jar jd-check-microservice-1.0.0.jar \
  -u JDE \
  -w XXXXXX \
  -e JDV920 \
  -r "*ALL" \
  -s localhost \
  -p 8077 \
  -m TestLoggindAndGetAddressBookWS \
  -a 28 \
  -n "Prueba - Argentina - 28                 "

-a: Address Book number of an existing record in your JDE environment.
-n: Name of the Address Book record corresponding to the number specified in -a.

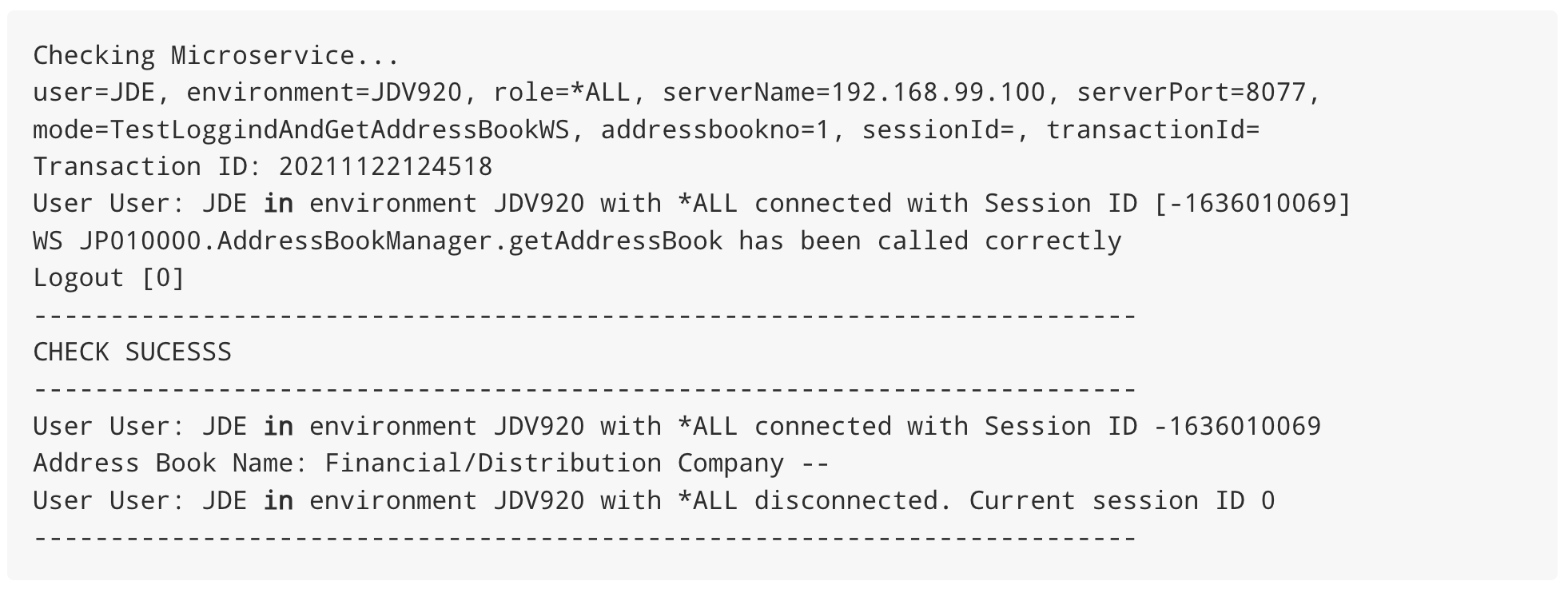

If everything is correctly configured, you will see output like the following:

Watch video: Microservice Installation

For more details, see the section JDE Atina microservices - Installation in the Atina JDE Microservices Installation Guide.

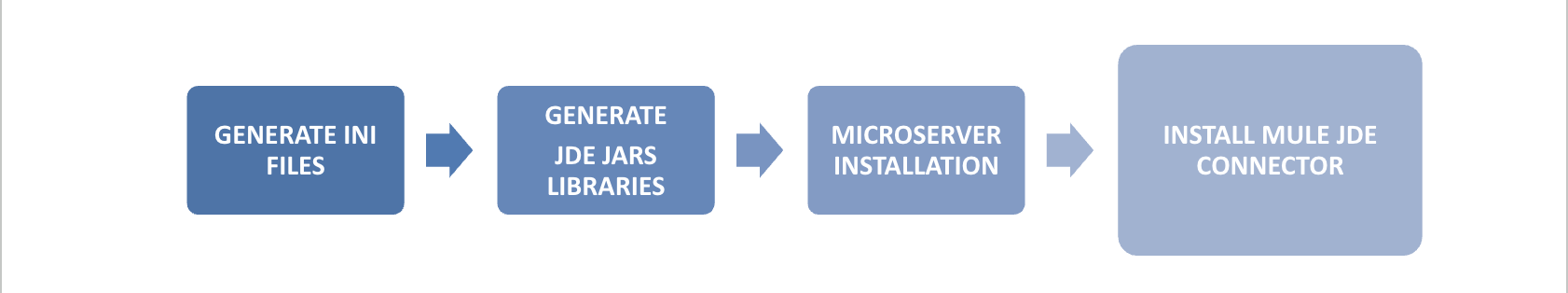

Step 4: Install Mule JDE Connector

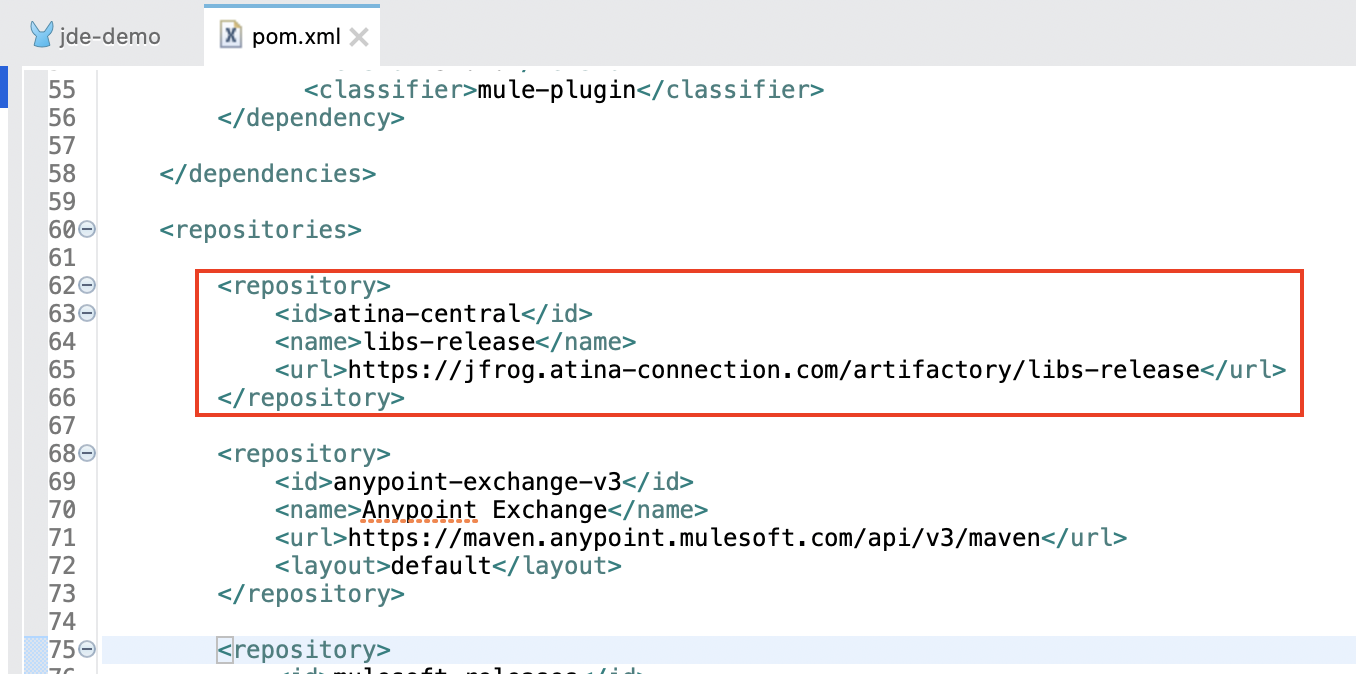

Step 4.1 - Configure Maven Repository

After creating your MuleSoft project, add the Atina repository to your pom.xml (within <repositories>):

<repository>
    <id>atina-central</id>
    <name>libs-release</name>
    <url>https://jfrog.atina-connection.com/artifactory/libs-release</url>
</repository>

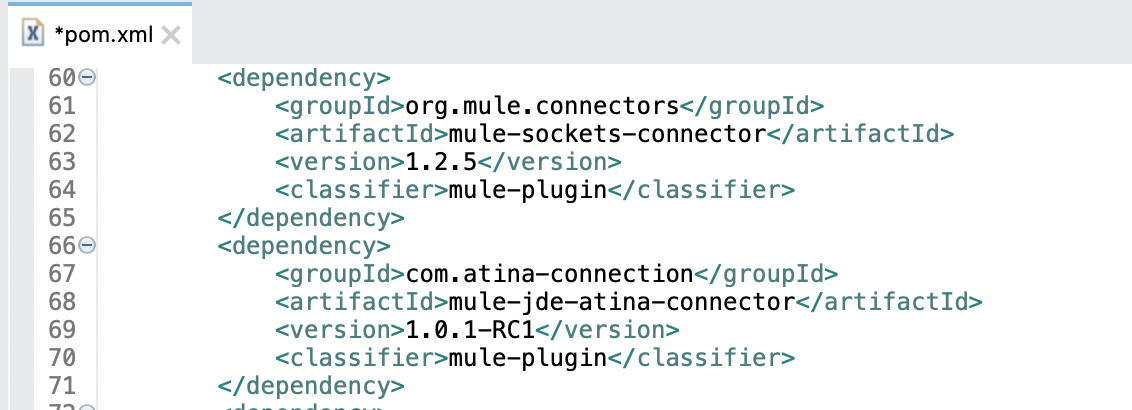

Step 4.2 - Declare the Connector Dependency

Inside the <dependencies> section of your pom.xml, add:

<dependency>
    <groupId>com.atina-connection</groupId>
    <artifactId>mule-jde-atina-connector</artifactId>
    <version>1.0.0-RC1</version>
    <classifier>mule-plugin</classifier>
</dependency>

Step 4.3 - Define the Global Connector Configuration

In your Mule project, create or open a flow file (e.g., jde-demo.xml), then:

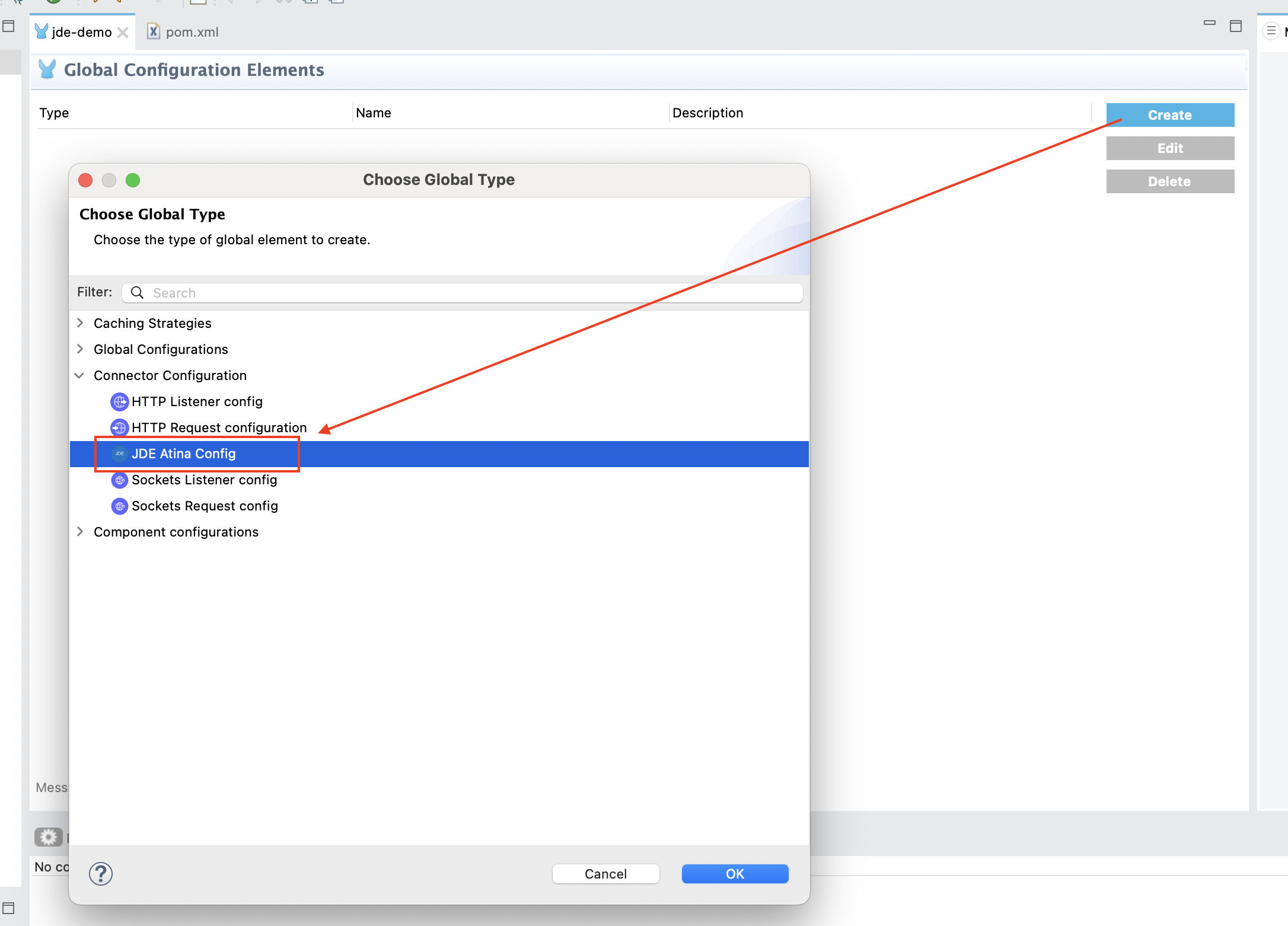

Open Global Configuration Elements and click Create.
Under Connector Configuration, select JDE Atina Config.

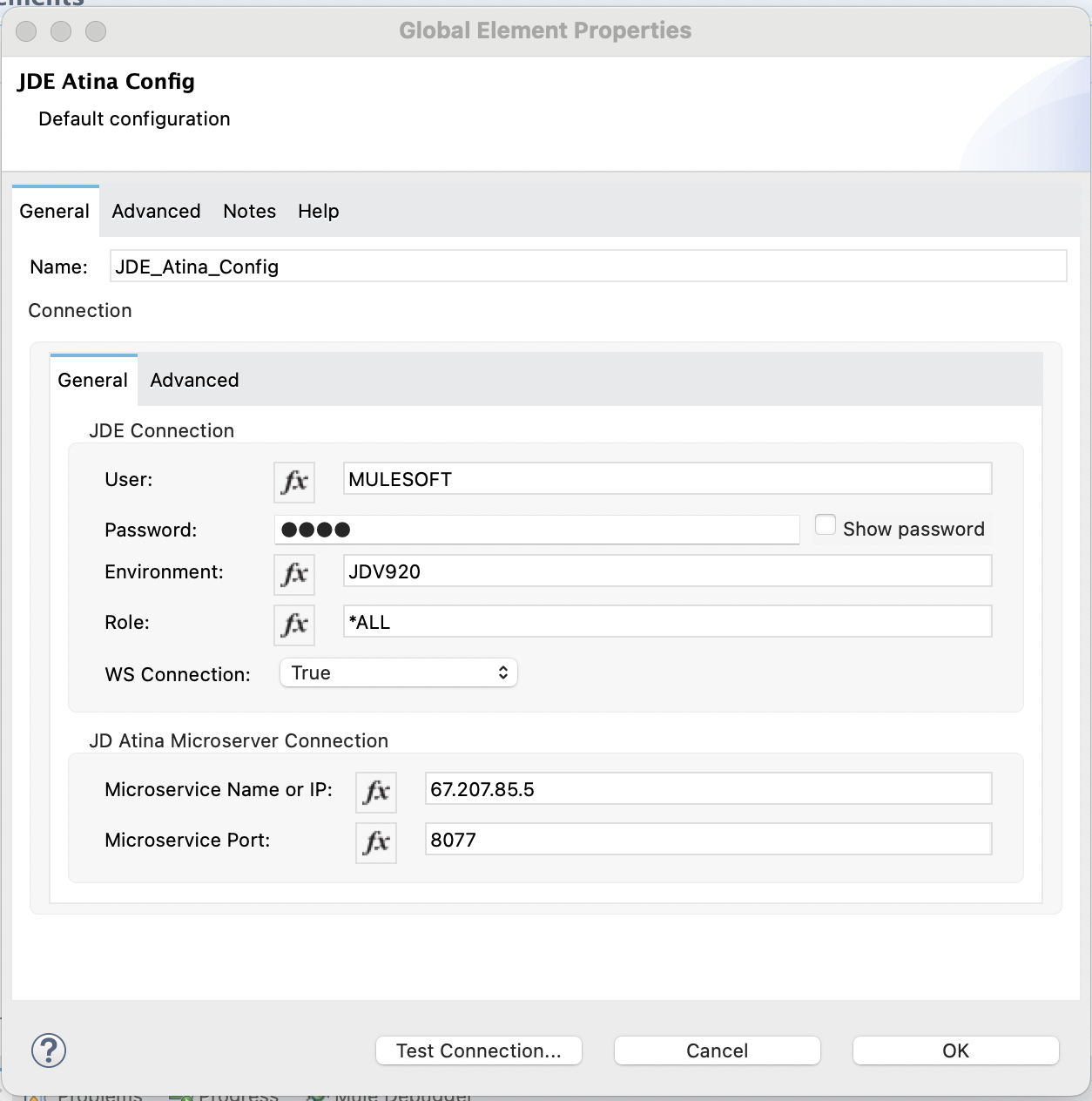

Configure the connection parameters:

For more details, see the section Preliminary Setup in the Atina JDE Connector User Guide.
